ARENA WATERING SOLUTIONS

Micro Rain arena watering systems are the latest innovation in arena watering. Today's horse owners know the importance of maintaining moisture content in their arena to insure proper footing and control dust to keep horse and rider healthy. Micro Rain systems provide the labor free solution to watering dusty arenas!

Horse owners have experimented for years with different methods of watering. Hand watering, stationary sprinklers, cumbersome water trucks, fence top sprinklers, and other methods are many times less than adequate and can be eliminated with the Micro Rain system. With staff members knowledgeable in the horse industry, Micro Rain systems have been designed with high speed gearing options, sprinkler head combinations, and model selections to fit most any arena size.

Choose the application you are interested in and the diagram shown will illustrate how the sprinkler travels the length of the arena.

Tired of dragging hoses to water your dusty arena?
Micro Rain is the proven leader in arena watering.  Horse owners have experimented for years with different methods of watering. Hand watering, stationary sprinklers, cumbersome water trucks, fence top sprinklers, and other methods are many times less than adequate and can be eliminated with the Micro Rain system. With staff members knowledgeable in the horse industry, Micro Rain systems have been designed with high speed gearing options, sprinkler head combinations, and model selections to fit most any arena size.

THE TURBINE DRIVE ADVANTAGE!

  • Durable and maintenance free
  • Smooth and consistent power transferred to the reel
  • Powered by the incoming water flow – NO external power needed
  • Easy speed adjustment with automatic shut off
  • Use multiple water sources including pond water or reclaimed water
  • NO wasteful water exhausted at the machine!

Micro Rain systems provide a perfectly even application of water to your arena while operating unattended at the speed you choose.  Simply set the machine at one end of the arena and pull out the hose and sprinkler cart to the opposite end.  To start the machine, attach the water hose to the base unit and turn on the water.  The machine will begin retracting after you engage the turbine drive system and set the retraction rate.  The user may spend their time elsewhere as the Micro Rain system completes the pass and automatically shuts off when finished.

Common Arena Models:
MR25  (Hose Size: 0.80” ID x 165 ft)
Max Wetted Area (ft):  98 wide x 218 long
Water Source Connection:  3/4” Garden Hose

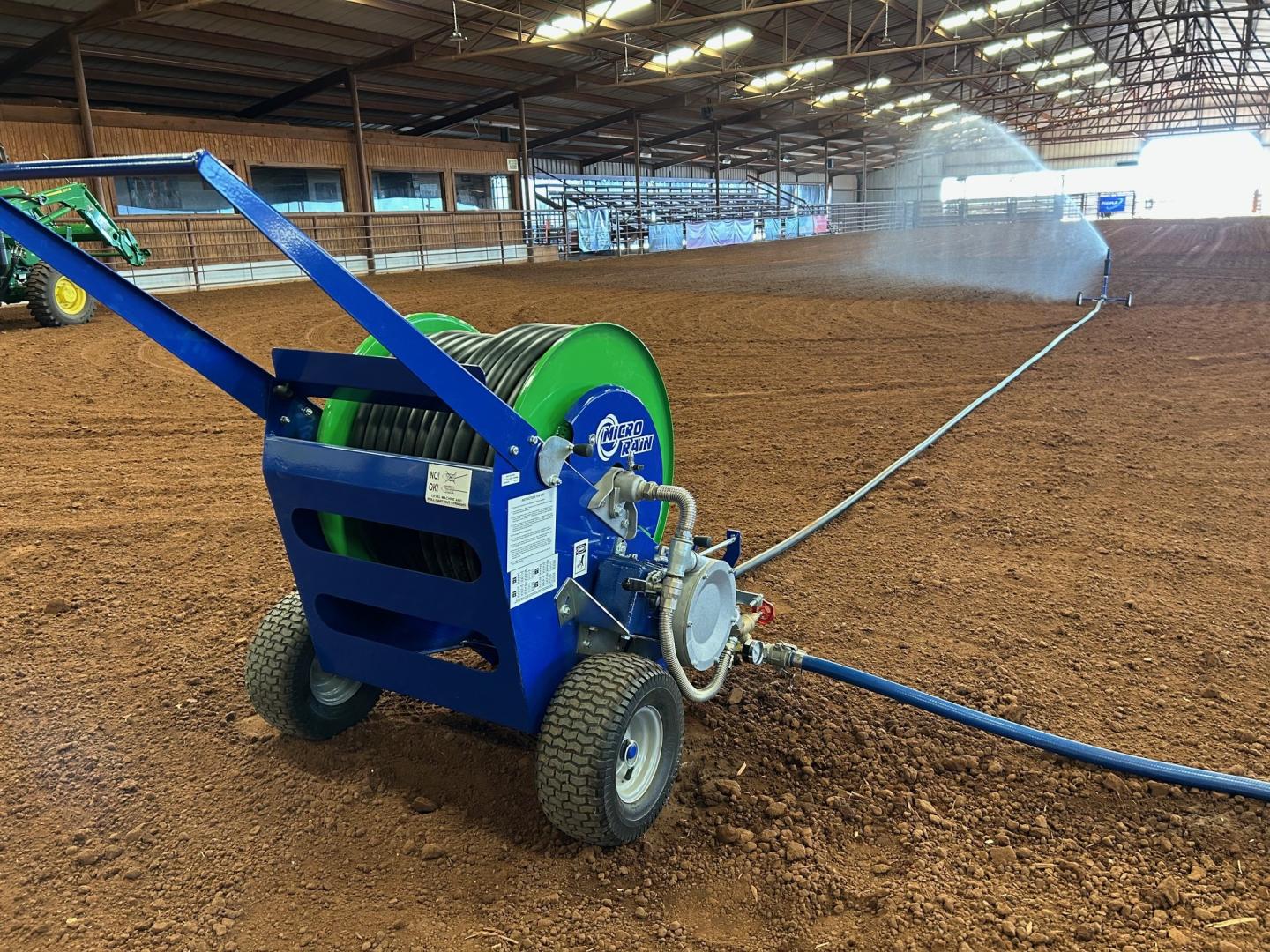

MR32  (Hose Size:  1” ID x 242 ft)
Max Wetted Area (ft):  130 wide x 308 long
Water Source Connection:  1 inch

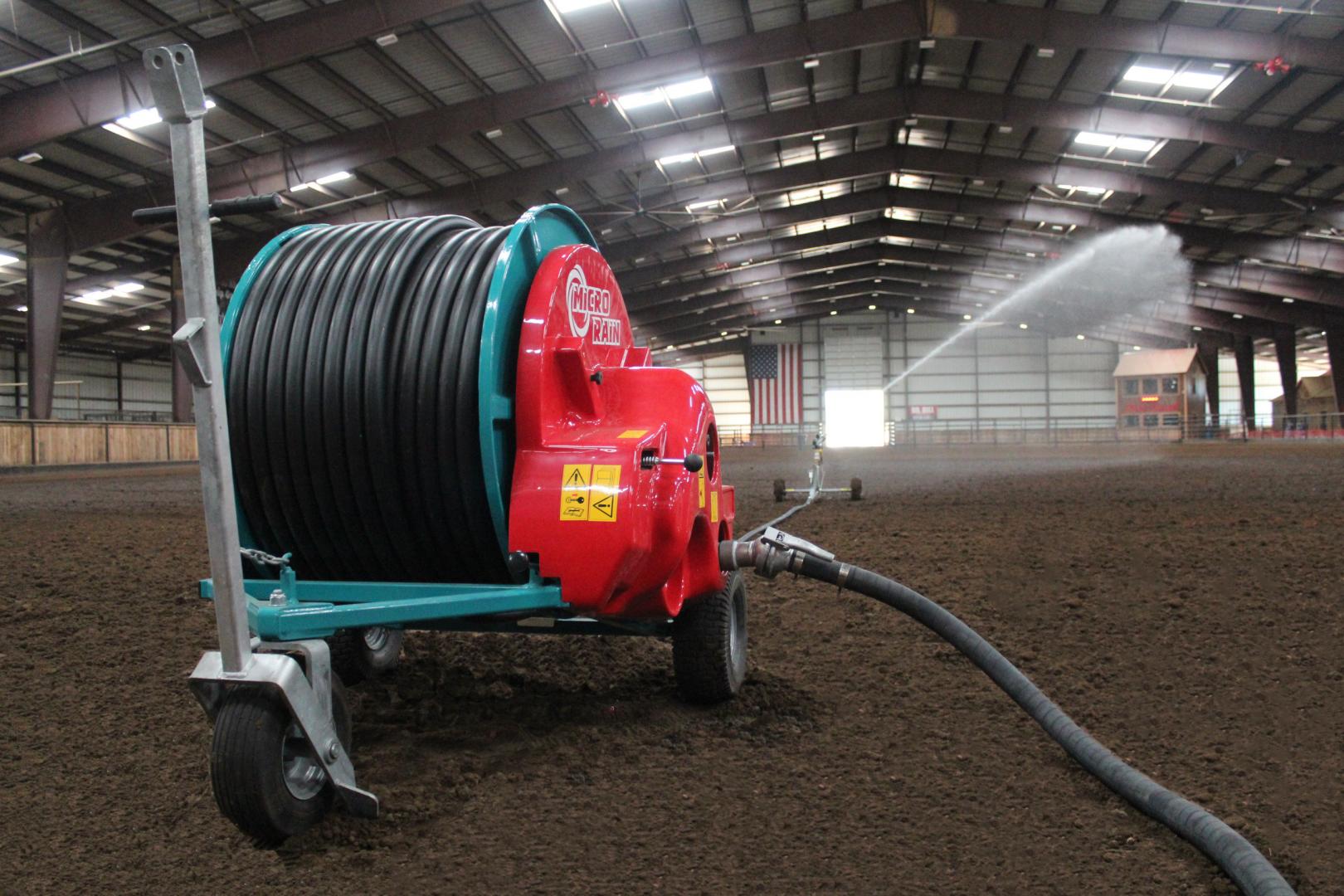

MR43  (Hose Size:  1.43” ID x 393 ft)
Max Wetted Area (ft):  160 wide x 492 long
Water Source Connection:  1.5 or 2 inch

MR63  (Hose Size:  2.1” ID x 328 ft)
Max Wetted Area (ft):  250 wide x 450 long
Water Source Connection:  2 inch
